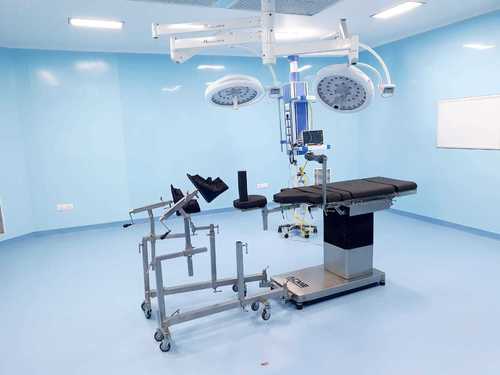

Electric OT Table with Manual Backups

Five Section centrically positioned RADIO TRANSLUCENT table top without any cross member facilities C-arm imaging.
Operating positions i.e. Height adjustment, Trendelenburg, Reverse Trendelenburg, Lateral Tilt and back section are precisely and smoothly controlled by cabled remote control through imported Linear Actuators.
Remote is ergonomically designed to have an easy and better grip with symbolic position figures.
Manual backup of Height adjustment, Top Slide, Trendelenburg, Reverse Trendelenburg, Lateral Tilt and back section by hand lever in case of electrical failure.
The head and leg section are detachable and interchangeable capacitating a single tables use in varied surgical procedures. These are manually operated by means of ratchet system.
Manually operated jack type kidney elevator flushed with the table top.
Lock & Unlock Lever for the movebility of the table on wheels
Remote Control with cable connection having Appropriate length

SUK: ACME 1200 EMT

Description

Standard Accessories :

Lithotomic Padded Crutches	1 Pair
L shaped Anesthetic Screen	1 Pc
Padded Shoulder Support	1 Pair
Side Support/Arm support	1 Pair
Arm board with pad	1 pcs.
PU foam mattress 50mm	1 set
Wide Lateral Support with clamp rod.	1 Pair

Technical Specifications:

Table Top Length	2150mm
Table Top Width	530mm
Minimum height (without mattress)	700mm
Maximum Height (without mattress)	1000mm
Trendelenberg/ Reverse Trendelenberg	300/ 300
Lateral Tilt ( Left Side)	200/ 200
Back Section adjustment	+ 70^o / -25^o
Head Section adjustment	+ 40^o / -90^o
Leg Section adjustment	+ 15^o / -90^o
Kidney Elevation	150mm
Load Capacity	200 kgs
Drives	Electric motors
Power Supply	220 V AC 50 Hz
Flex/ Reflex	220 / 220
